Gather and Spread

pre-requisites

To use the functions in this tutorial in your own R session you would need to use library to load the tidyverse package as shown below. I’ve pre-loaded it for this tutorial.

library(tidyverse)

Introduction to Gather and Spread

Wide data

There are two main ways that spreadsheets can be organized. The wide data format has one individual or sample per row and observations spread across multiple columns.

Wide Data Example 1
There is one fruit type per row and multiple observations types across the columns.
Wide Data Example 2
There is one tomato plant per row and multiple observations of different phenotypes in the columns:

Long data

Alternatively, in the long data format there is a single observation per row, and a key that indicates the type of observation.

Long Data Example 1
Long Data Example 2

Who cares?

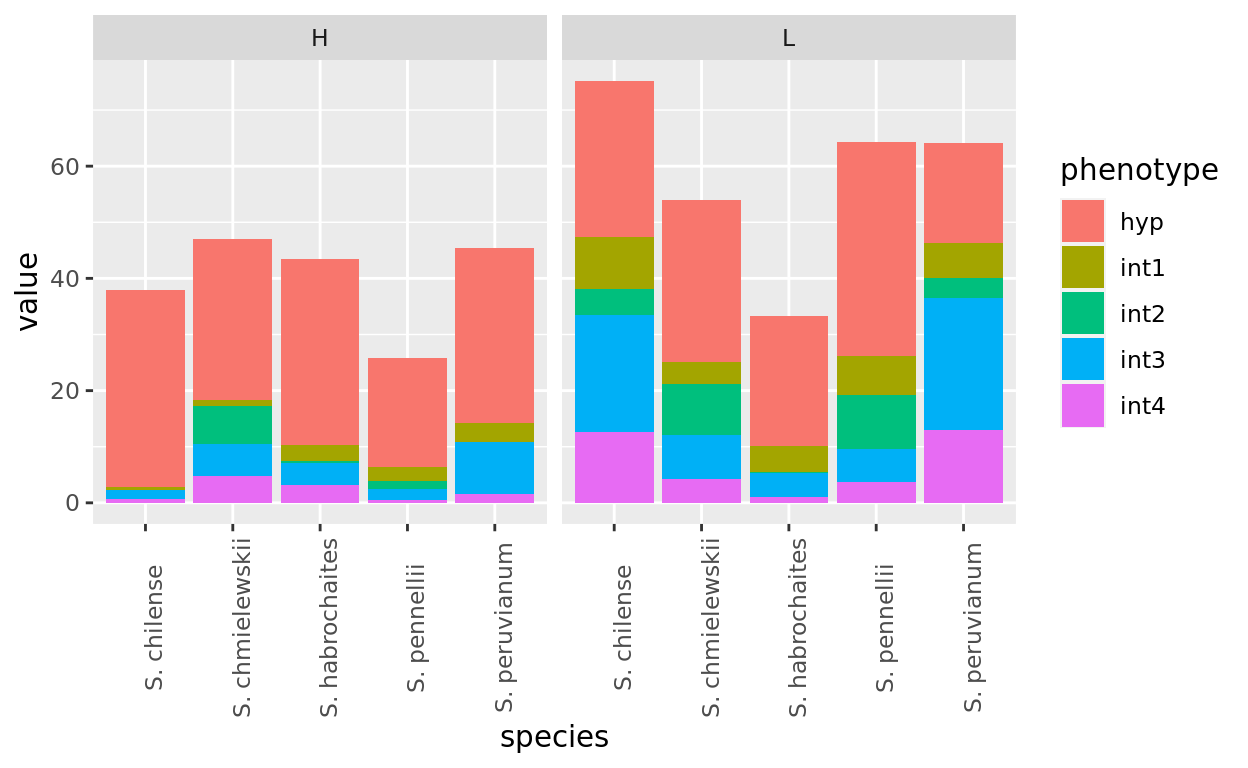

Typically data arrives in the wide format. Often to accomplish the analyses you will want to do in R you will need it in the long format. For example, ggplot only deals with a single column of values per aesthetic. If you want to plot multiple categories of observations at once you need them gathered into the long format. For example to make the graph below, the data has to be in the long format:

Gathering

To convert wide format to long format we use the gather() function from tidyverse. It is appropriately named, because we are gathering columns of data.

Intro to gather

Let’s look again at the original fruit data set:
Here is how we gather it.
fruit.long <- fruit %>%
  gather(key="data_type", # the column name of the new column that will contain the key
         value="value", # the column name of the column that will contain the observations
         color, shape, size # the column names that we want to gather.
  )
fruit.long

Pay attention to the arguments.

  • key defines the column name of the new column that will contain the key
  • value defines the column name of the column that will contain the actual data
  • The remaining arguments specify the columns that are to be gathered.
Quiz
Quiz

Column specification

There are multiple ways that you can specify the columns to be gathered.

*You can list them all, as done in the first example:

fruit.long <- fruit %>%
  gather(key="data_type", # the column name of the new column that will contain the key
         value="value", # the column name of the column that will contain the observations
         color, shape, size # the column names that we want to gather.
  )
fruit.long

*You can specify them as a range from the first to last column that you want:

fruit.long <- fruit %>%
  gather(key="data_type", # the column name of the new column that will contain the key
         value="value", # the column name of the column that will contain the observations
         color:size # the column names that we want to gather.
  )
fruit.long

*You can instead use the - to indicate columns that you do not want to gather; all others will be included. Try it by changing the code below

fruit.long <- fruit %>%
  gather(key="data_type", # the column name of the new column that will contain the key
         value="value", # the column name of the column that will contain the observations
         -COLUMN_NAME_TO_EXCLUDE
  )
fruit.long

Gather the tomato data

Practice what you learned above to gather the hyp, int1, int2, int3, and int4 columns together in the tomato data set. Your end product should look like this:

Spread your data

What if you need to go the other direction, from long format to wide? For this we use the spread() function, to spread our values across multiple columns.

If we start with a long data set:

We can spread it as follows:
fruit.long %>%
  spread(key = "data_type", # which column holds the key?
         value = "value") # which column contains the values?

Now try spreading the the tomato data to recreate the original format. Modify the code below.

I have created a tomato.long data set. First take a look:

tomato.long
tomato.long %>%
  spread(...)

More information

More information on these functions is provided in chapter 12 of R for Data science
